OEM Portable Charging Cable with CE Certificate
Features
1. Material of Charging Gun: PA66+GF, high temperature resistance (RTI140 ºC), high electrical performance (CTI-0), and its flame-retardant grade is UL94-V0.
2. Material of Charging body: SI-PC, stable performance under - 40 ºC, long service life.
3. TUV-certified charging cable.
4. Cage structure of the terminal design, avoid hurting vehicle interface, improve safety and plugin and plug-out easier.
Specification
| Connector Type | Optional: Type 2-Type 2; Type 1-Type 2; GB/T-Type 2; |
| Voltage (V)-Current (A)-Power (KW) | Optional: 250V 16A 3.6KW; 250V 32A 7KW; 415V 16A 11KW; 415V 32A 22KW |
| Contact bush | Silver plated brass |
| Cable material (Optional) | TPE or TPU |
| Certificates | CE, TUV, UKCA |
| Standard | EN IEC 61851- 1:2010 IEC 62196-2 2010 |
| Charging interface | Type 2 (IEC 62196); Type 1 (SAE J1772); GB/T |
| IP rating | IP55 |
| Mechanical life | No-load plug in/pull out>10000times |
| Coupled insertion force | >45N<80N |
| Impact of external force | can afford 1m drop and 2t vehicle run over pressure |
| Insulation resistance | >1000MQ(DC500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
Inspection
Product Detail Pictures

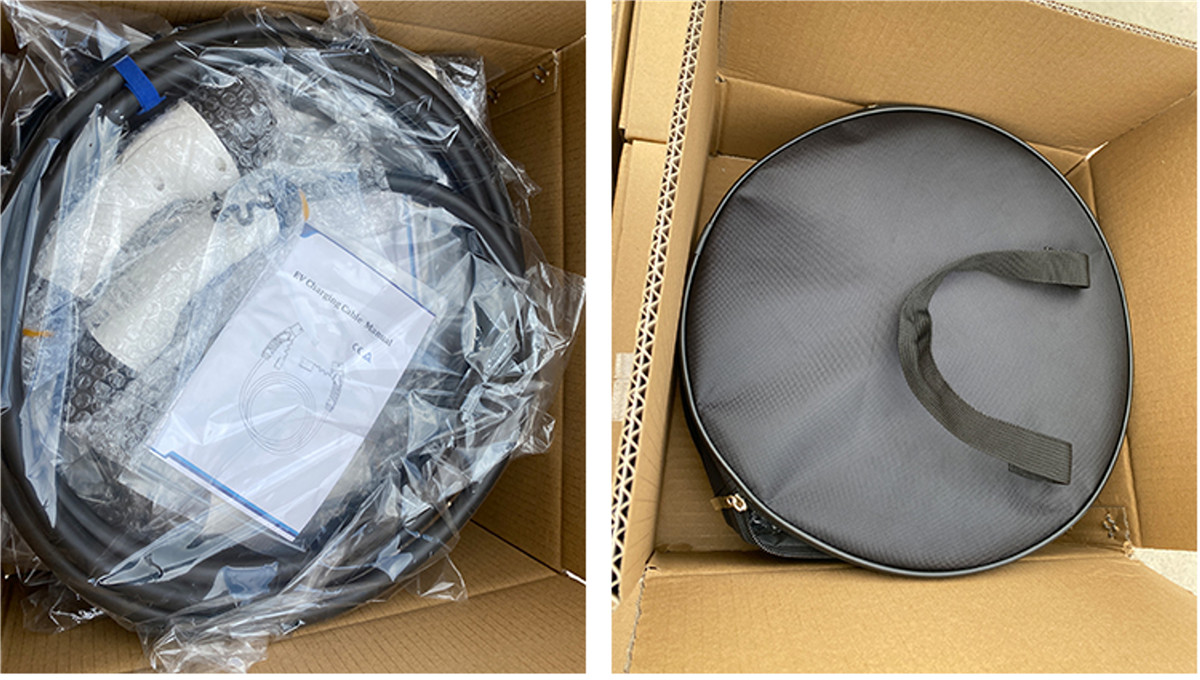

Packing Options
FAQ
Q1. What are your terms of payment?
A: T/T 30% as deposit to confirm order, 70% T/T balance payment before pickup.
T/T, PayPal, Western Union payment terms are acceptable.
Q2. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving the deposit payment. The specific delivery time depends on the order quantity and our stock status.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. What is the warranty policy?
A: One year warranty. We will provide lifelong technical support.
Quality problems occur during the warranty (except for caused by improper use), we are responsible for providing free replacement accessories, and the freight shall be paid by the buyer.
Q5. What is the minimum order quantity?
A: We do not sell in retail. MOQ for each model is 10 pieces.
Q6. What is the sample policy?
A: We could supply the paid sample to test quality.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
